Model	RSM72-6-325M	RSM72-6-330M	RSM72-6-335M
Max power (W)	325	330	335
Max power tolerance	0~3%	0~3%	0~3%
Max voltage (V)	37.20	37.60	37.90
Max current (A)	8.73	8.78	8.83
Open-circuit voltage (V)	46.10	46.30	46.70
Short-circuit current (A)	9.25	9.29	9.32
Optical conversion efficiency	＞16.9%	＞17.10%	＞17.4%

Model	RSM72-6-325M	RSM72-6-330M	RSM72-6-335M
Max power (W)	237.6	241.3	244.9
Max power tolerance	0~3 %	0~3%	0~3%
Max voltage (V)	34.40	34.60	34.90
Max current (A)	6.91	6.97	7.02
Open-circuit voltage (V)	43.10	43.30	43.40
Short-circuit current (A)	7.48	7.53	7.58

NOCT (nominal operating cell temperature)	45℃±2℃
Temperature parameter of open-circuit voltage (ß)	-0.32% /℃
Temperature parameter of short-circuit current (ɑ)	+0.05% /℃
Temperature parameter of module power	-0.39% /℃

Max voltage	1000 V (DC)
Working temperature	-40℃~+85℃
Max load capacity (module surface)	5400Pa (IEC61215)
Impact resistance capacity	max diameter: 25m; max impact velocity: 23m/s

Solar cell	monocrystalline, 156×156mm (6×12), 4BB
Junction box	IP67, 3 diodes
Tempered glass	4.0mm
Connecting cable	compatible with MC4 interface; 4m㎡; the cable length is 1200 mm

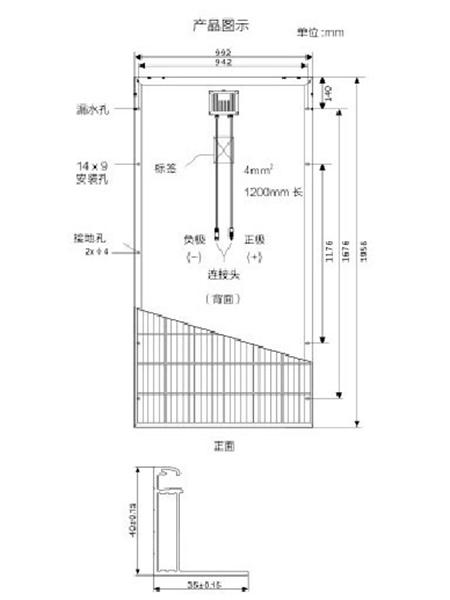

Aluminum frame	1956×992×40 mm
Weight	24.0kg

Vehicle	17.5m truck
Thickness of module	40mm
Pieces /boxes	23
Panels	1150
