Model	RSM60-6-265M	RSM60-6-270M	RSM60-6-275M	RSM60-6-280M	RSM60-6-285M
Max power (W)	265	270	27	280	285
Max power tolerance	0~3%	0~3%	0~3%	0~3%	0~3%
Max voltage	30.50	30.80	30.90	31.00	31.20
Max current	8.69	8.78	8.91	9.02	9.13
Open-circuit voltage (V)	38.20	38.40	38.50	38.70	38.80
Short-circuit current (A)	9.15	9.27	9.36	9.47	9.56
Optical conversion efficiency	＞16.30%	＞16.60%	＞16.90%	＞17.20%	＞17.5%

Model	RSM60-6-265M	RSM60-6-270M	RSM60-6-275M	RSM60-6-280M	RSM60-6-285M
Max power	193.7W	197.4W	201.0W	204.7W	208.3W
Max power tolerance	0~3%	0~3%	0~3%	0~3%	0~3%
Max voltage (V)	28.10	28.40	28.60	28.90	29.10
Max current (A)	6.89	6.95	7.03	7.09	7.16
Open-circuit voltage (V)	35.00	35.20	35.50	35.80	36.20
Short-circuit current (A)	7.26	7.31	7.35	7.41	7.45

NOCT (nominal operating cell temperature)	45℃±2℃
Temperature parameter of open-circuit voltage (ß)	-0.32%/ ℃
Temperature parameter of short-circuit current (ɑ)	+0.05%/ ℃
Temperature parameter of module power	-0.39%/ ℃

Max voltage	1000V (DC)
Working temperature	-40℃~+85℃
Max load capacity (module surface)	5400pa (IEC61215)
Impact resistance capacity	max diameter: 25m; max impact velocity: 23m/s

Solar cell	monocrystalline，156×156mm (6×10), 4BB
Junction box	IP67, 3 diodes
Tempered glass	3.2mm
Connecting cable	compatible with MC4 interface; 4m㎡; the cable length is 900 mm

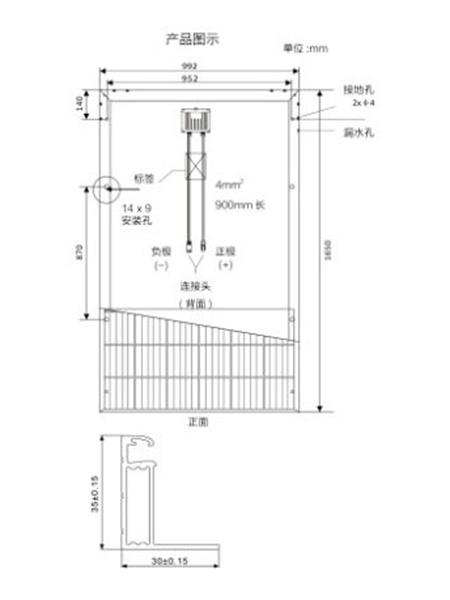

Aluminum frame	1650×992×35 mm
Weight	18.0kg

Vehicle	17.5m truck
Thickness of the module	35mm
Pieces/ boxes	30
Panels	1500
